How To:  Add your own Lettering to our Embroidery Designs

This is a very general guide to adding your own lettering (or designs) to an Embroidery Design.  There are so many different Embroidery Machines, and embroidery software programmes available, that we cannot offer a comprehensive method for each variation.  For specific machines or software, you should consult your Manual.

We cover two ways of adding lettering

  • Using your Embroidery Machines In-built Lettering
  • Using Editing Software on your computer before you send your design to your Machine

psst (I'm an editing girl, so I enlisted the wonderful Darina (KK Admin) for using your In-built Lettering)


Using your Embroidery Machines In-built Lettering

 In this example, Darina has used our Free Wine Coaster

Free Wine Coaster

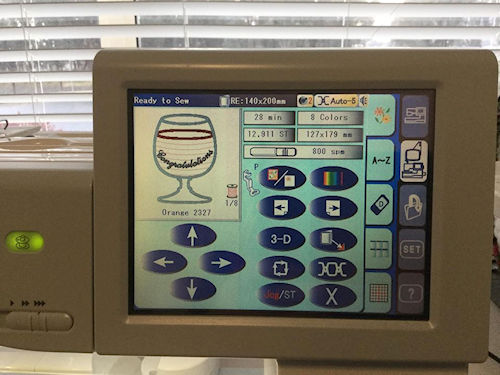

Load Design to your Machine

Load Design

Enter Edit Mode

Choose Lettering Style

Choose Lettering

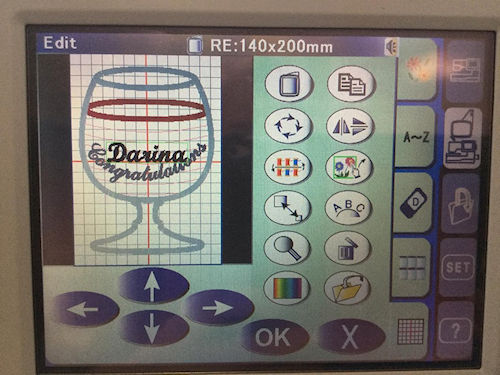

Add Lettering

Add Lettering

Play with your style and Position

Once you are happy, Save, and go back to Sewing Mode

Shape/position

At this point, if you stitched the design exactly as is, you have the original Congratulations Lettering, plus your added Lettering will stitch at the very end, so you need to check your design instructions, and make sure you stitch your Lettering at the RIGHT time - before you Add the Backing.

You may be able to delete the original lettering while you are editing, but if not, simply skip that thread color.

Stephanie Wine Coasters

How gorgeous are these Wine Coasters

Stephanie deleted our lettering and aded her own design


For those of you with editing software, read on to see how we add/edit using Embird Software.

Once again, your editing programme will look different, but the same principles apply


The Pool Ball Coaster used in this example is from our Freebie Sports Coaster set - If you are already a member, Log On and download from your Member Only Freebies, or Join us to get access

  Inserting Text with editing software

ee01a

This example shows you how to add lettering with Embird Editor software on your Computer before you send your Design to your Embroidery Machine.

Insert Text using an Embird Alphabet

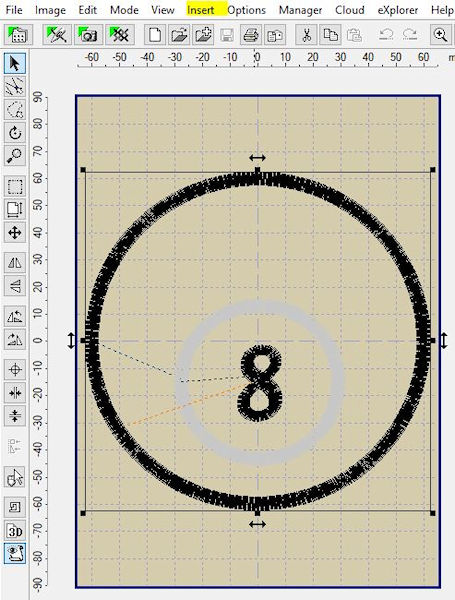

Open Design in Embird Editor

Click on the Insert button (highighted on top menu)

Choose Insert Text

Choose your alphabet style and type in your text/name

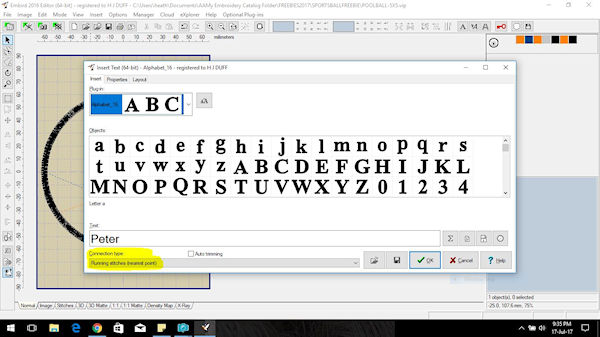

ee13

I leave the connection type as nearest point, which means the system will join the letters together at their closest point, and you will have no jump stitches.  This is a personal preference.

From this screen you can have a play with the lettering - re-size, make the lettering curve - its truly just a matter of playing with the software to get what 'you' want.   I want to curve the name in line with the edges, so I changed the Layout to Curve

ee17

ee4

Slide the 'slider' at the bottom (highlighted) until you get the lettering placed as you like it

ee5

When you are happy, click the green tick bottom right to create

Embird will create the lettering and add it smack in the middle of your design.

ee6

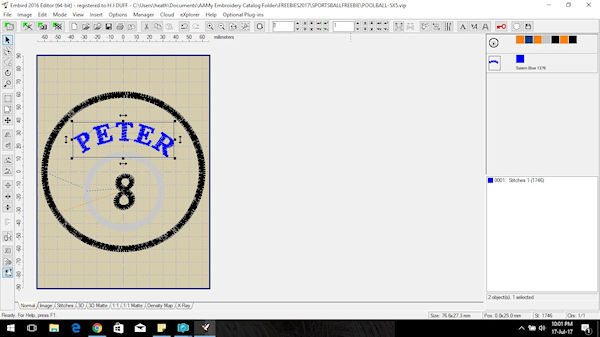

While it is highlighted, you can click on the lettering and re-size and move into position

EE17

Now you have your name created and placed on your Coaster, but if you send it to your machine now, your name is going to stitch last.

If we look at the original Stitch Sequence, together with the Design Instructions, we know that Color 6 is where we attach the Coaster Backing

pool ball stitch sequence

We need to add the Lettering before Color 6, so its time to look at the right hand side of the screen where we have our Colors

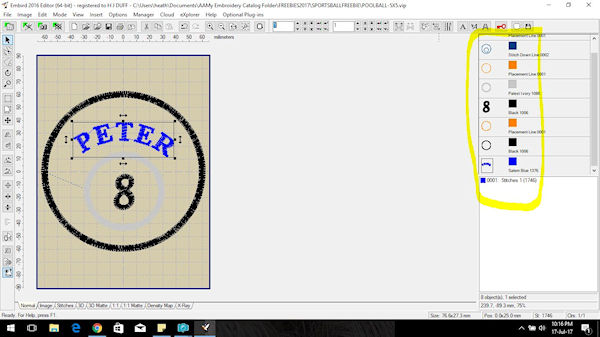

To separate all the Colors (stops) in the design, we can right click on the top 'box' and choose Separate all Colors

ee18

ee20

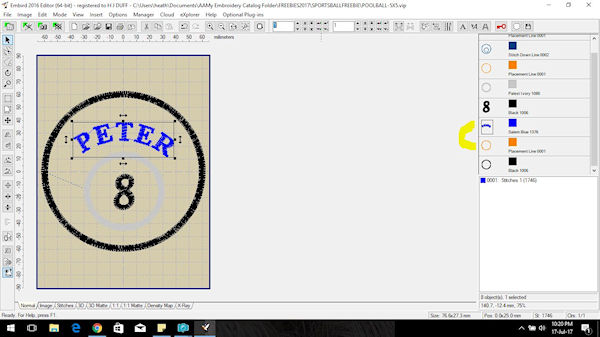

Now its just a matter of drag and drop your name (Blue) before the Orange Placement Line

ee21

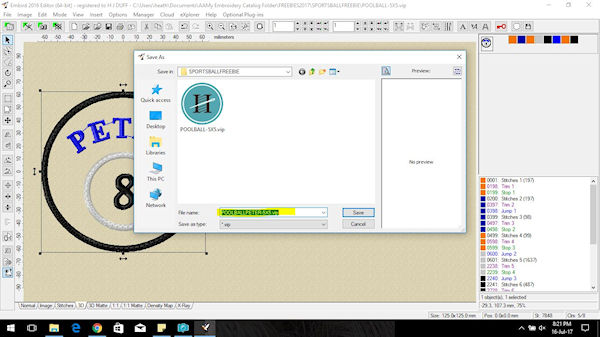

One last thing to do - FILE SAVE AS new name.  Whenever you are editing or adding to a design, rather than just Saving, which over-writes the original design, choose File Save as, and give it a new name - that way you have both designs saved!

ee33

Now your stitch sequence looks like this - ready to stitch out

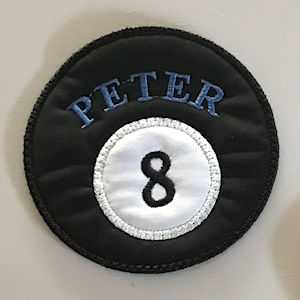

ee87

PoolBall



Whatever software or editing programme you use, the key points to remember are:

    • Sizing/placement of your lettering - make sure you choose a font or design that fits in your clear space
    • Sequence of stitching - edit your design, so your lettering/design stitches in the correct sequence - for Coasters, before you add the backing
    • Save As - Give your edited design a new name
    • If you are new to this - test on a sample first

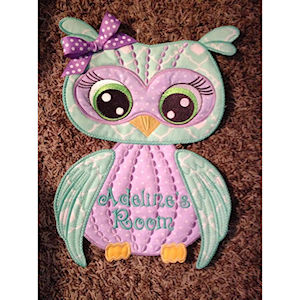

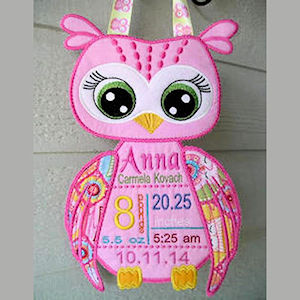

Not just confined to Coasters - how cute are these Large Owls Nancy and Debbie added their own lettering

 Nancy Owl  Debbie Owl

If you are interested in editing software, there many to choose from.  The important thing is to choose a software that you can get helpful tutorials or groups to aid with your learning.  I started with Embird, and tutorials from Carolyn Keber at Secrets of Embroidery.  You have a 30 Day trial - you can start with Embird Editor, then add on Studio which is a full digitising programme later- all at a relatively cheap price.  (I am not afilliated to Embird - this is a personal recommendation)


If you have a different method of adding lettering, you are welcome to e-mail heather@kreativekiwiembroidery.co.nz and we can add your information to this blog.


We love seeing photos of your designs, so be sure to join our Kreative Kiwi Facebook Group where you can share and discuss your projects,
